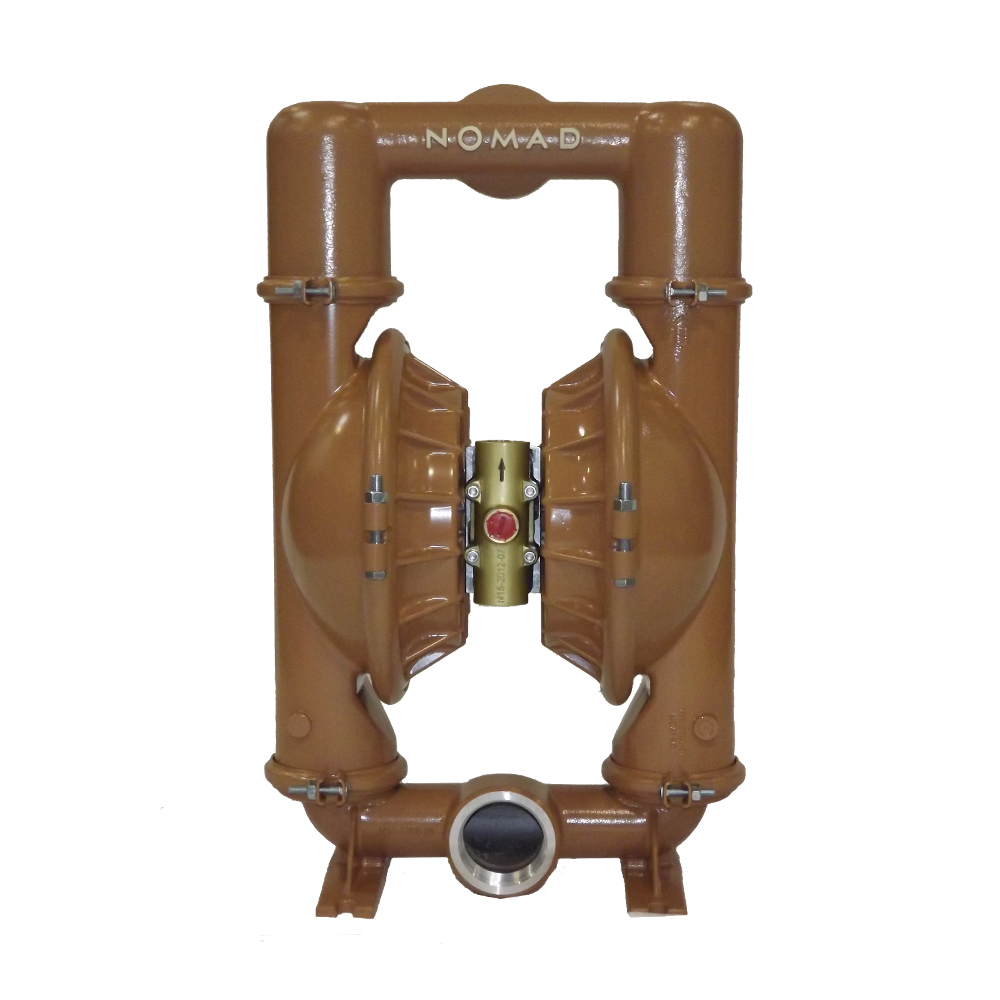

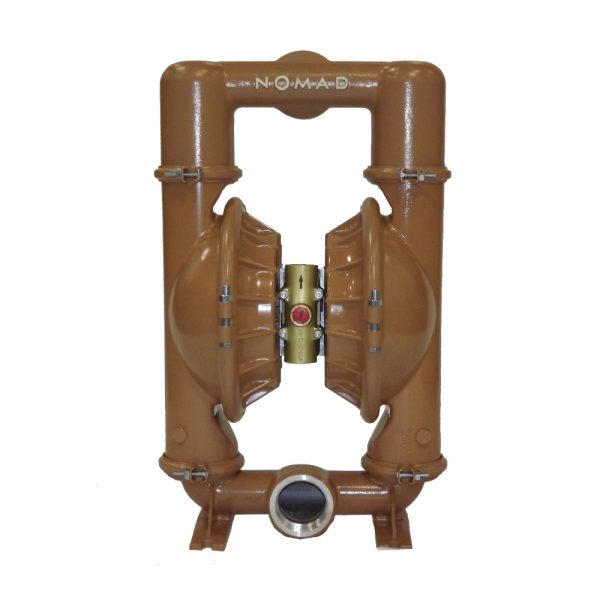

3″ (76 mm) Metallic Rubber/TPE-Fitted Air-Operated Double Diaphragm Pump Clamped

Suction & Discharge Size:FNPT 3″ (76 mm) Inlet and Discharge
Porting Location:Center Ported
Connection Types:NPT/BSP
Air Inlet & Air Exhaust Size:3/4″

Maximum Flow Rate:232 gpm (878 lpm)
Maximum Air Supply Pressure:125 psig (8.6 bar)
Displacement Per Stroke:1.40 gal (5.3 L)
Minimum Air Inlet Stork:N/A
Maximum Particle Size:3/8″
Sound Pressure:N/A
Operating Temperature:Neoprene -17.8° C to 93.3° C 0° F to 200° F, Buna-N -12.2° C to 82.2° C 10° F to 180° F , EPDM -51.1° C to 137.8° C -60° F to 280° F, Viton®-40° C to 176.2° C -40° F to 350° F, Santoprene®-40° C to 107.2° C -40° F to 225° F, Polyurethane 12.2° C to 65.6° C -10° F to 220° F, Hytrel® -28.9° C to 104.4° C -20° F to 220° F, PTFE 4.4° C to 104.4° C 40° F to 220° F

Bolted or Clamped:CLAMPED
Wetted Materials:Aluminum, 316 SS, Ductile Iron
Diaphragm Materials:PTFE, Neoprene, Buna, Viton®, Santoprene®, Viton®, Nordel®, Hytrel® Polyurethane
Air Valve:Brass
Ball Materials:PTFE, Neoprene, Buna, Santoprene®, Viton®, Nordel® Polyurethane, Hytrel®
Seat Materials:Aluminum, Stainless Steel, Mild Steel, Neoprene, Buna, Viton®, Santoprene®, Viton®, Nordel® Polyurethane, Hytrel®
O-ring Materials:PTFE, Buna

Maximum Height:32.4
Maximum Width:32.4
Maximum Depth:16.8
Aluminum Weight:116 lbs (53 kg)
Stainless Steel Weight:175 lbs (79 kg)
Ductile Iron Weight:200 lbs (91 kg)
Polypropylene Weight:N/A

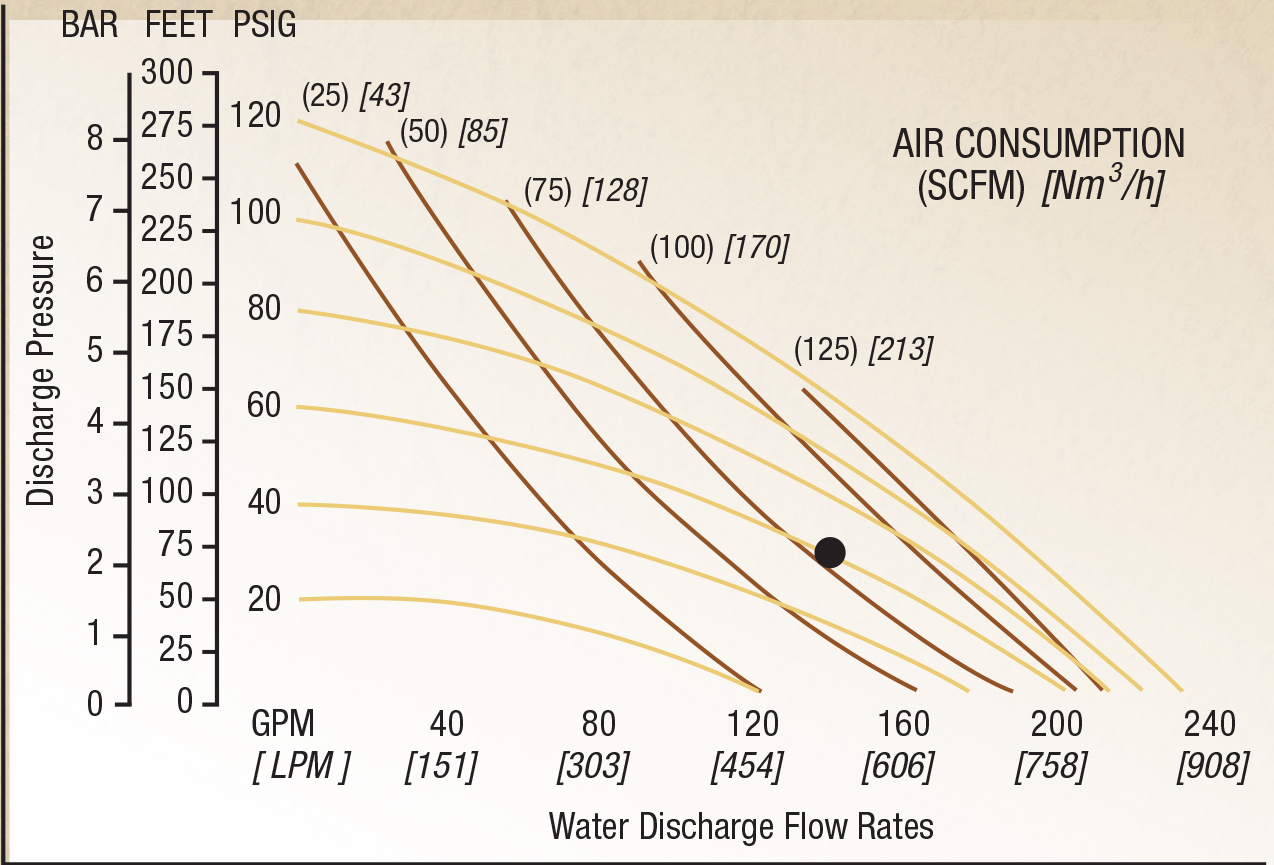

Pump Performance

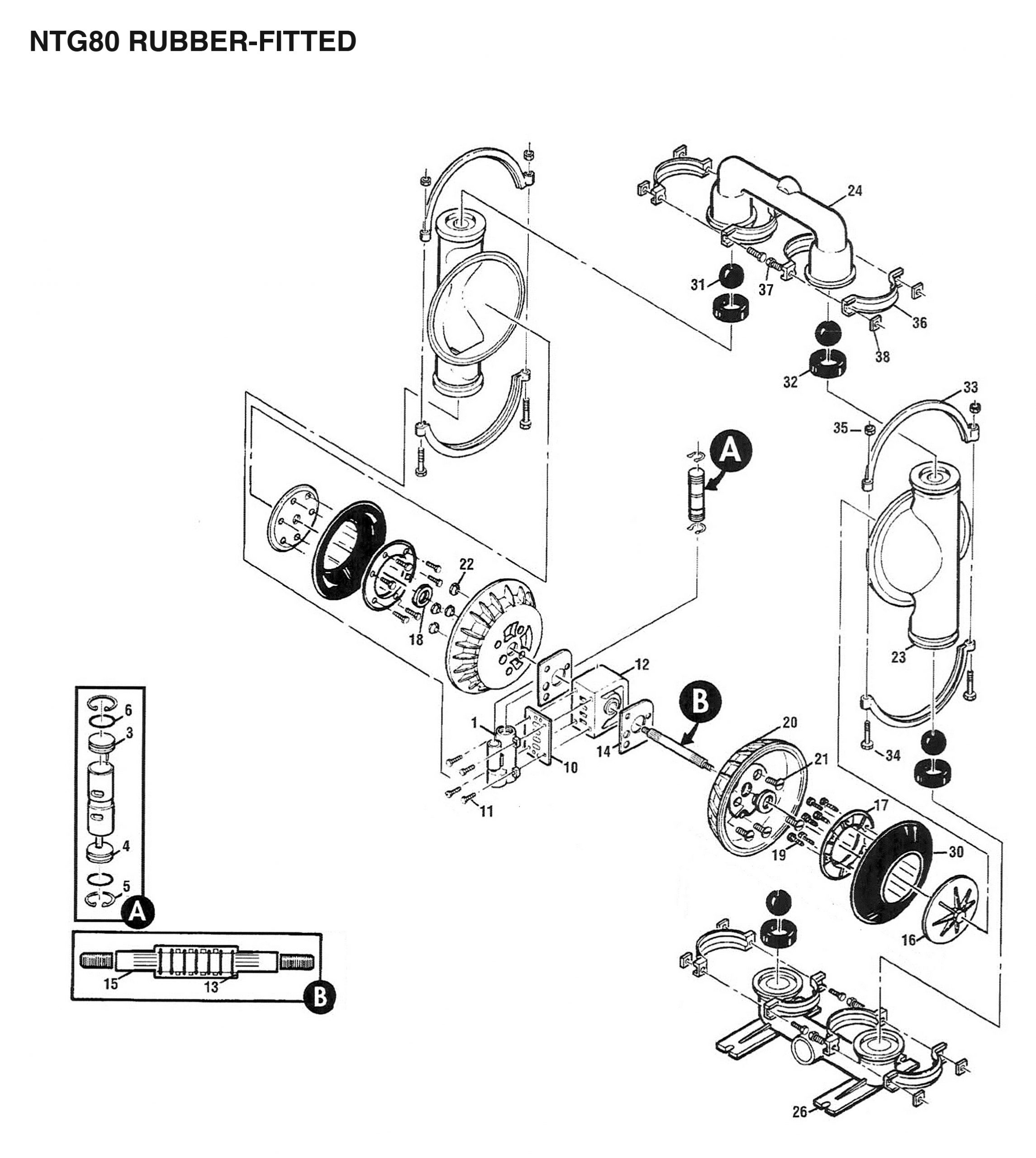

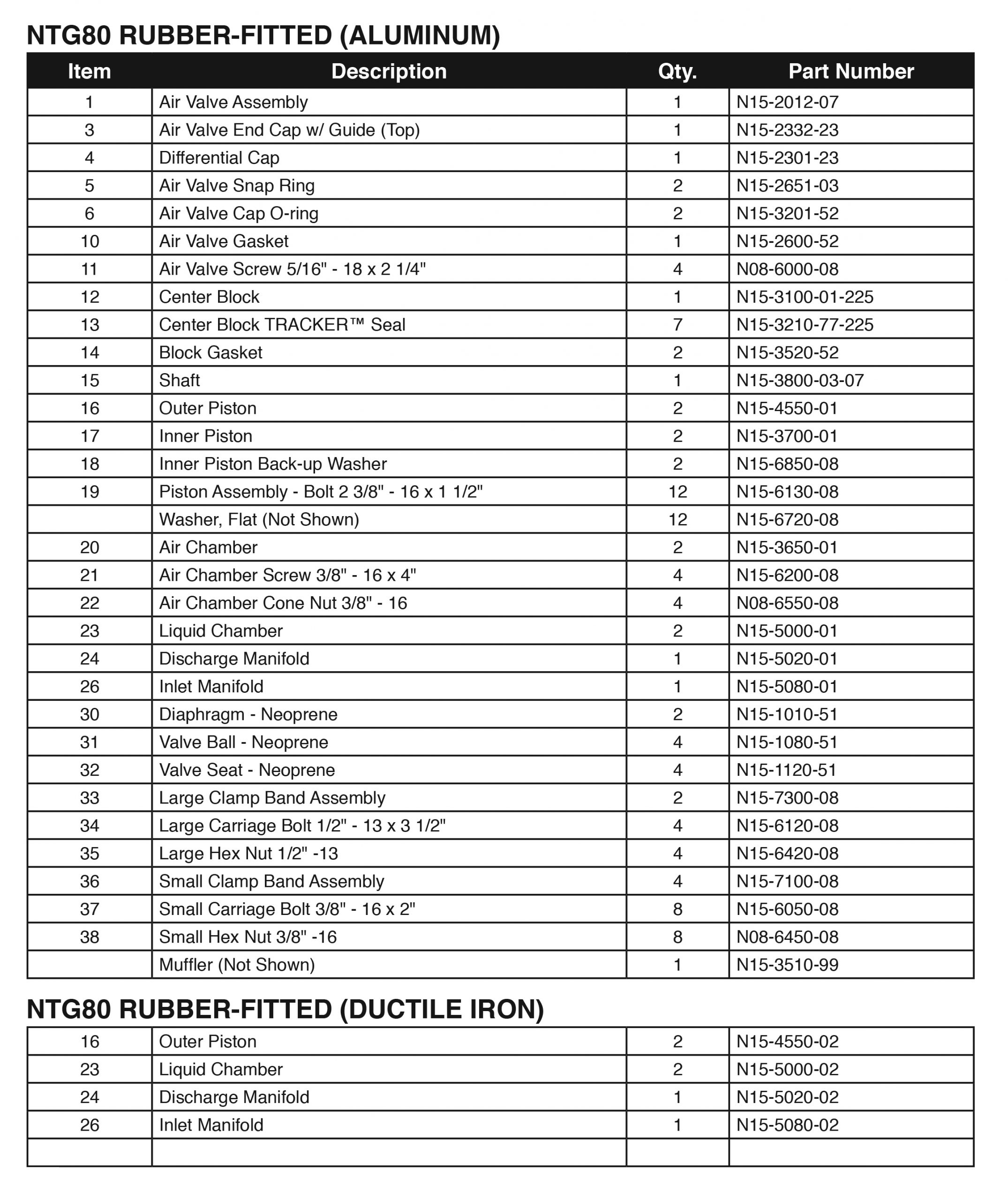

Pump Spare Parts

Pump Applications

Automotive, Ceramics, Chemical, Electronic/Semi, Food/Beverage, Mining/Construction, Petroleum, Pharmaceutical, Wastewater
