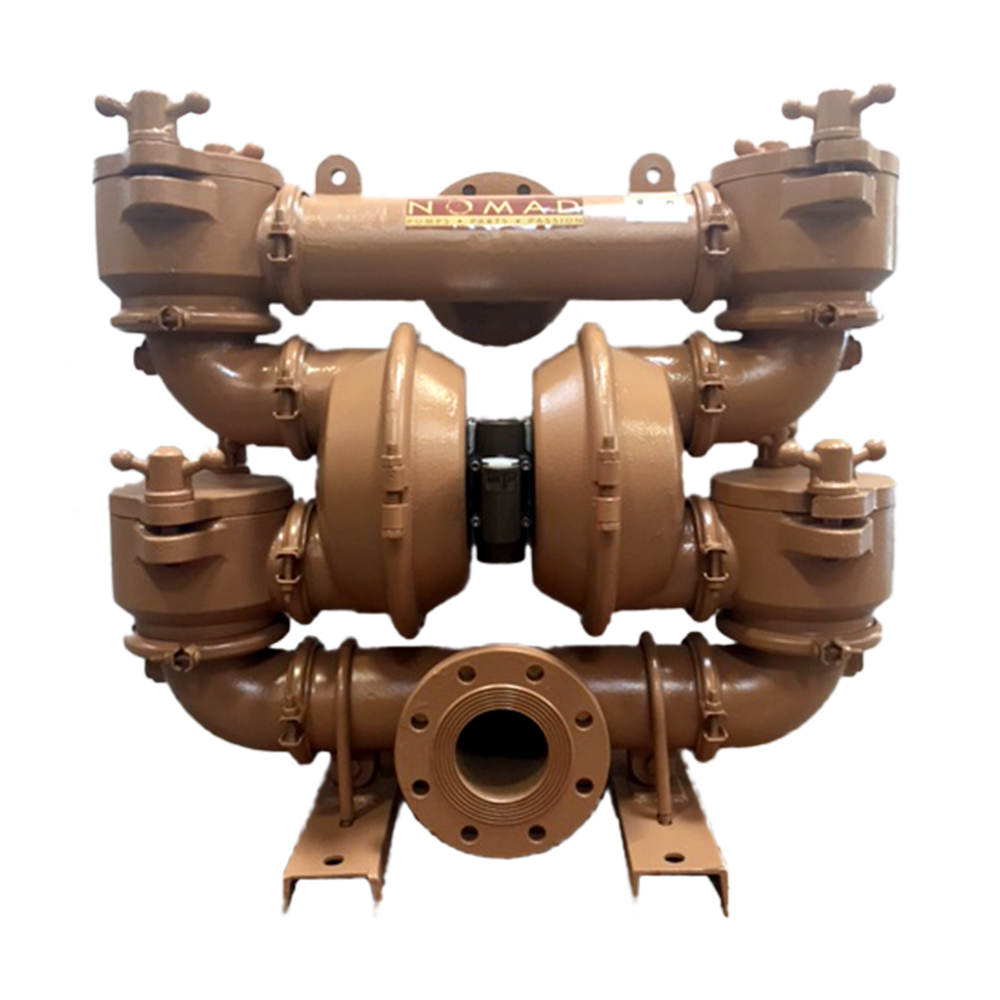

4″ (102 mm) Metallic Rubber/TPE-Fitted Air-Operated Double Diaphragm Pump Clamped

Suction & Discharge Size:Flanged 4″ (102 mm) Inlet and Discharge
Porting Location:Center Ported
Connection Types:ANSI/DIN
Air Inlet & Air Exhaust Size:3/4″

Maximum Flow Rate:275 gpm (1041 lpm)
Maximum Air Supply Pressure:125 psig (8.6 bar)
Displacement Per Stroke:1.22 gal (4.62 L)
Minimum Air Inlet Stork:N/A
Maximum Particle Size:1 3/8″ (35 mm)
Sound Pressure:N/A
Operating Temperature:Neoprene -17.8° C to 93.3° C 0° F to 200° F,Polyurethane 12.2° C to 65.6° C -10° F to 220° F

Bolted or Clamped:CLAMPED
Wetted Materials:Ductile Iron
Diaphragm Materials:PTFE, Neoprene, Buna, Viton®, Santoprene®, Viton®, Nordel®, Hytrel® Polyurethane
Air Valve:Brass
Ball Materials:PTFE, Neoprene, Polyurethane
Seat Materials:Neoprene, Polyurethane
O-ring Materials:Neoprene, Polyurethane

Maximum Height:32.5
Maximum Width:32.5
Maximum Depth:13
Aluminum Weight:N/A
Stainless Steel Weight:N/A
Ductile Iron Weight:500 lbs (231 kg)
Polypropylene Weight:N/A

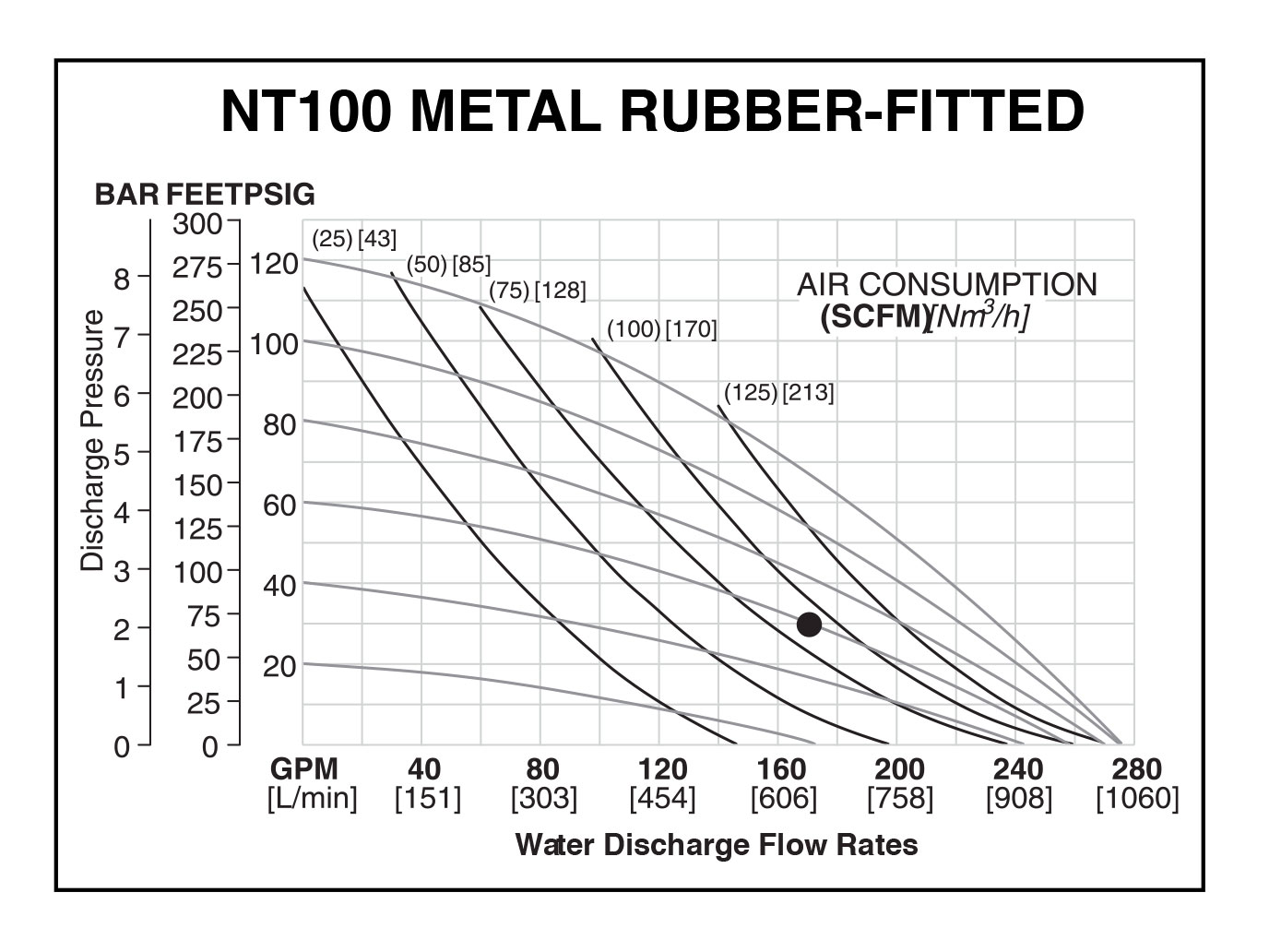

Pump Performance

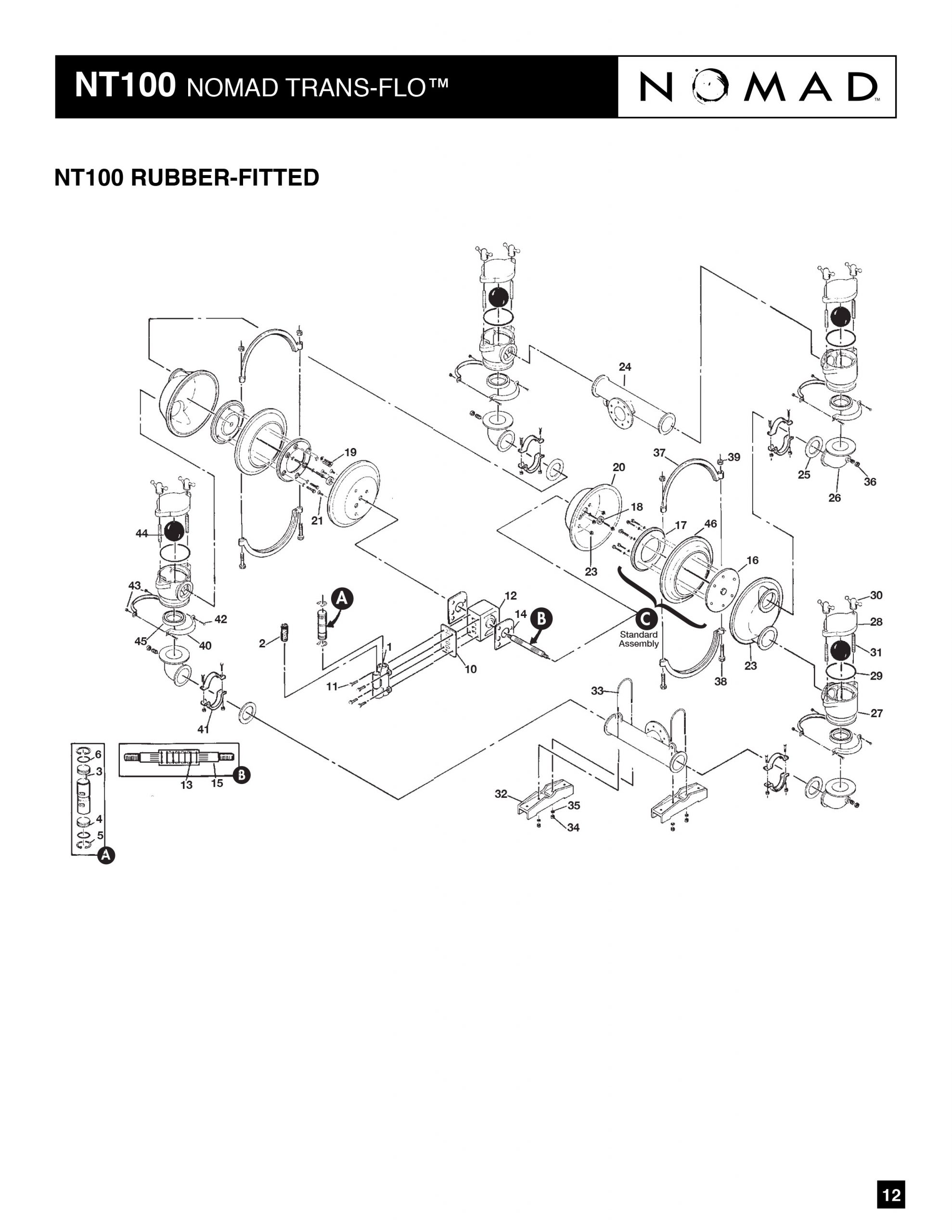

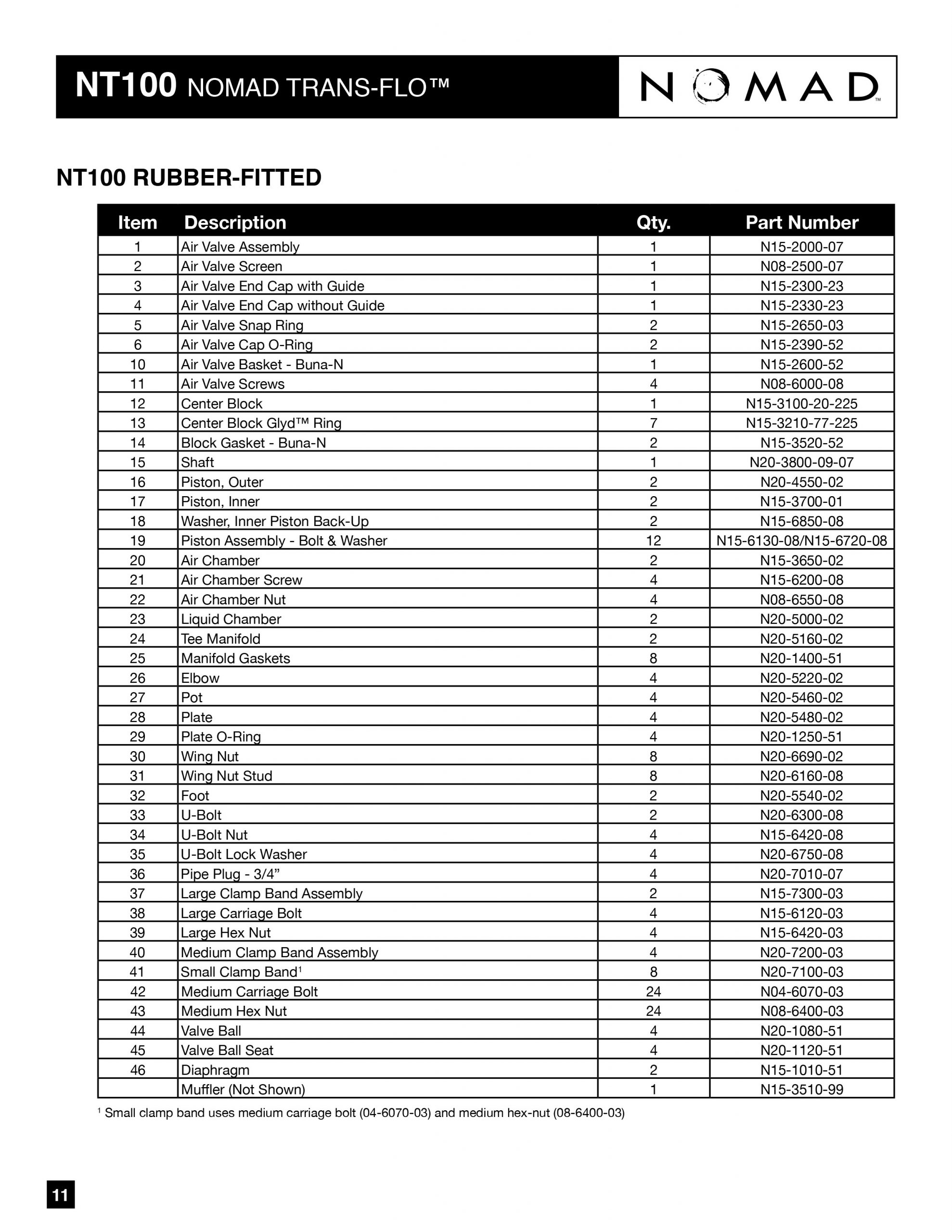

Pump Spare Parts

Pump Applications

Automotive, Ceramics, Chemical, Electronic/Semi, Food/Beverage, Mining/Construction, Petroleum, Pharmaceutical, Wastewater
