1/4″ (6.4 mm) Non-Metallic PTFE-Fitted Air-Operated Double Diaphragm Pump Clamped

Suction & Discharge Size:FNPT 1/4″ (6.4mm) Inlet and Discharge
Porting Location:Center Ported
Connection Types:NPT
Air Inlet & Air Exhaust Size:1/8″

Maximum Flow Rate:PWR-FLO
Maximum Air Supply Pressure:4.8 gpm (18.1 lpm)
Displacement Per Stroke:125 psig (8.6 bar)
Minimum Air Inlet Stork:0.005 gal (0.02 L)
Maximum Particle Size:N/A
Sound Pressure:1/64
Operating Temperature:Neoprene -17.8° C to 93.3° C 0° F to 200° F, Buna-N -12.2° C to 82.2° C 10° F to 180° F , EPDM -51.1° C to 137.8° C -60° F to 280° F, Viton®-40° C to 176.2° C -40° F to 350° F, Santoprene®-40° C to 107.2° C -40° F to 225° F, Polyurethane 12.2° C to 65.6° C -10° F to 220° F, Hytrel® -28.9° C to 104.4° C -20° F to 220° F, PTFE 4.4° C to 104.4° C 40° F to 220° F

Bolted or Clamped:CLAMPED
Wetted Materials:Polypropylene
Diaphragm Materials:PTFE, Neoprene, Buna, Santoprene®, Viton®, Nordel® Polyurethane, Hytrel®
Air Valve:Polypropylene
Ball Materials:PTFE
Seat Materials:N/A
O-ring Materials:N/A

Maximum Height:5.8
Maximum Width:5.8
Maximum Depth:4.5
Aluminum Weight:3 lbs (1.4 kg)
Stainless Steel Weight:N/A
Ductile Iron Weight:N/A
Polypropylene Weight:N/A

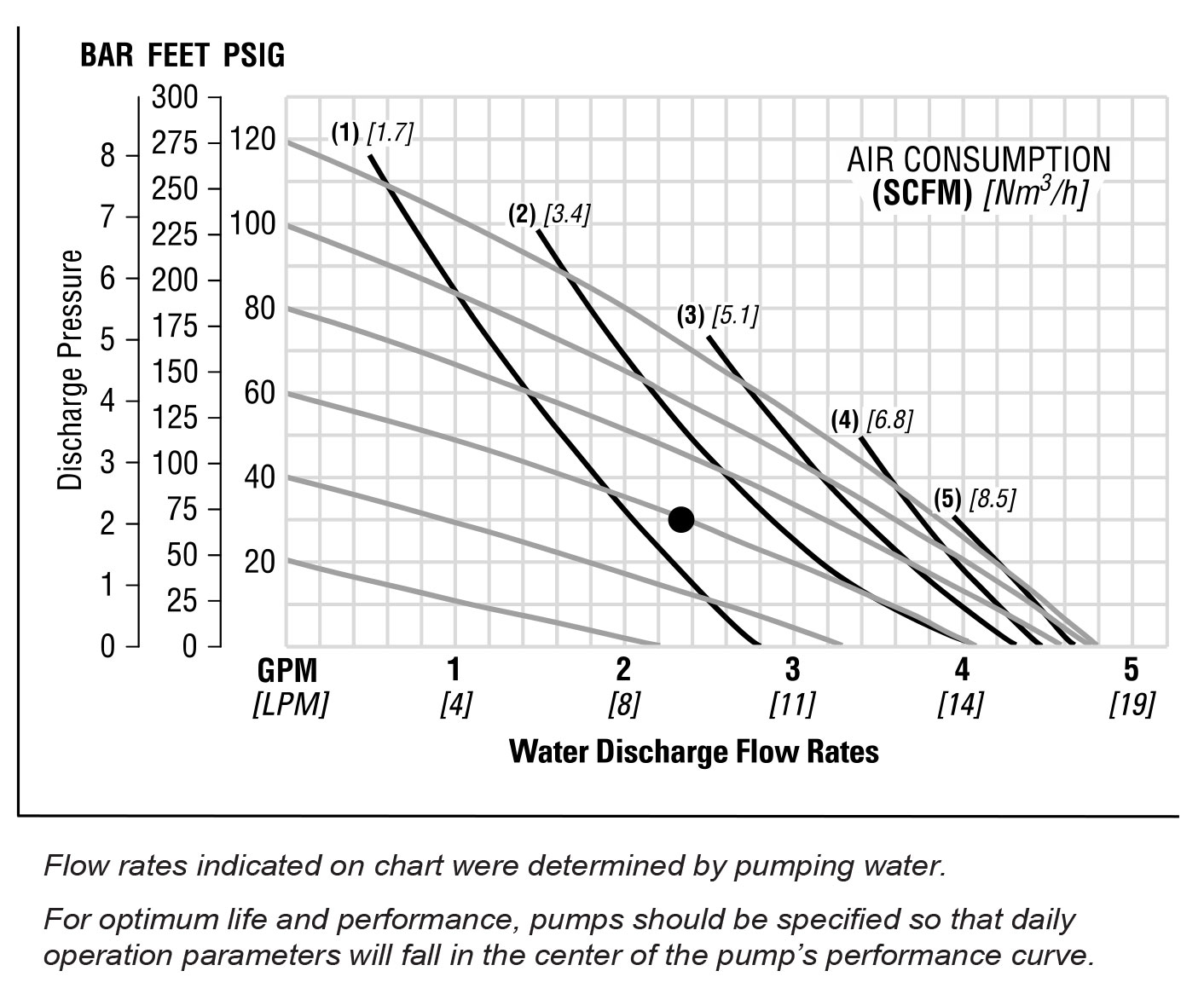

Pump Performance

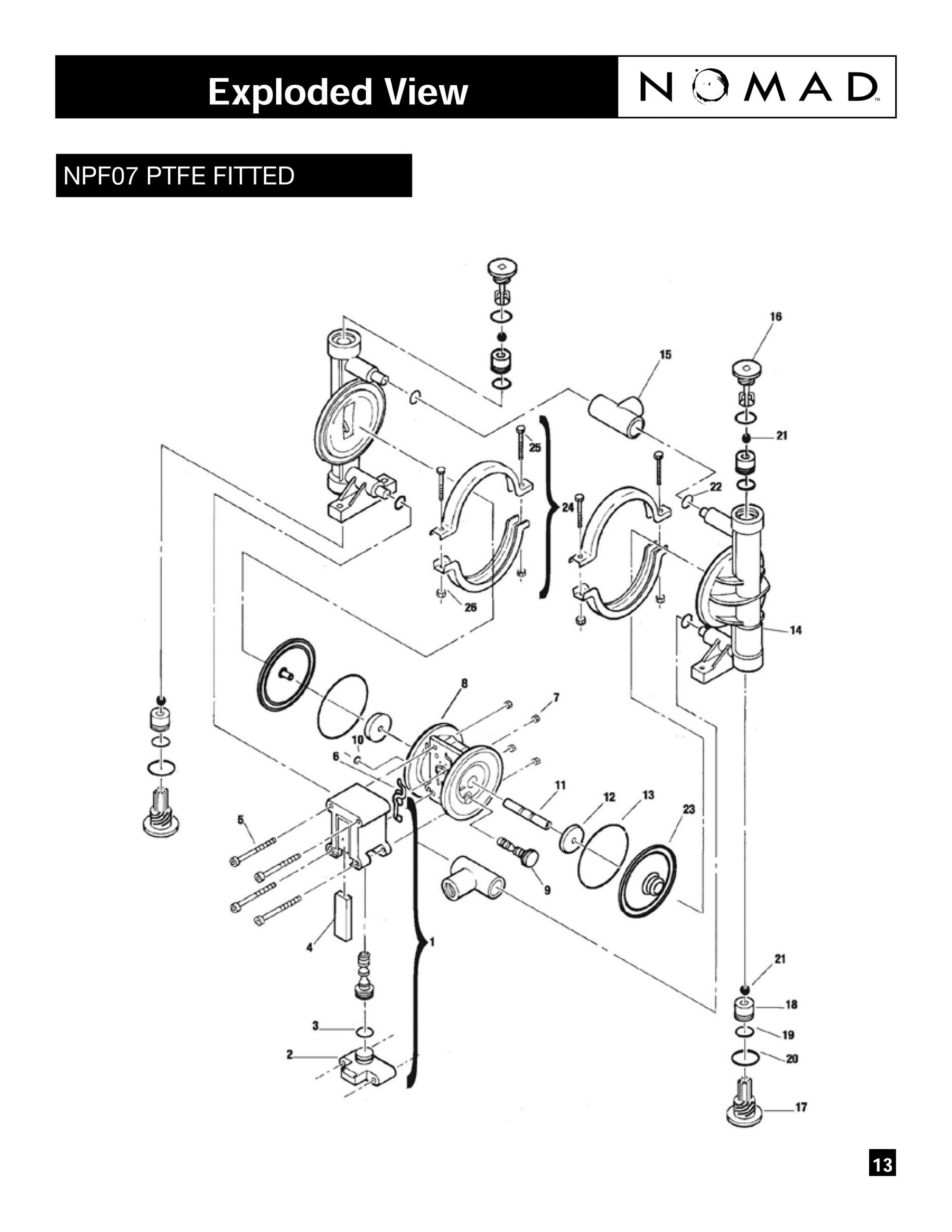

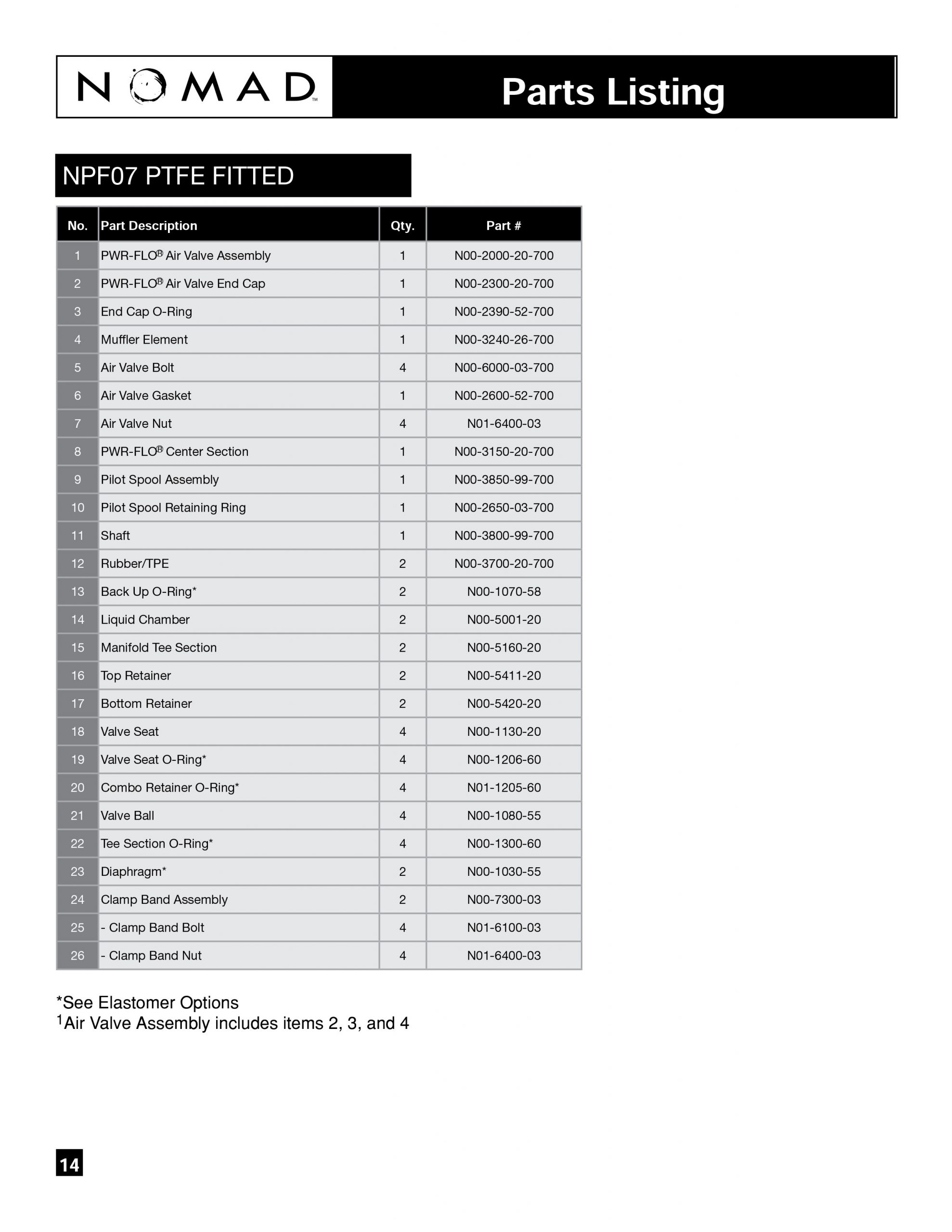

Pump Spare Parts

Pump Applications

Automotive, Ceramics, Chemical, Electronic/Semi, Food/Beverage, Mining/Construction, Petroleum, Pharmaceutical, Wastewater

Ask A Question About This Pump
