| Suction & Discharge Size: | FNPT 2″ (51 mm) Inlet and Discharge |
| Porting Location: | Center Ported |
| Connection Types: | NPT/BSP |
| Air Inlet & Air Exhaust Size: | 3/4″ |

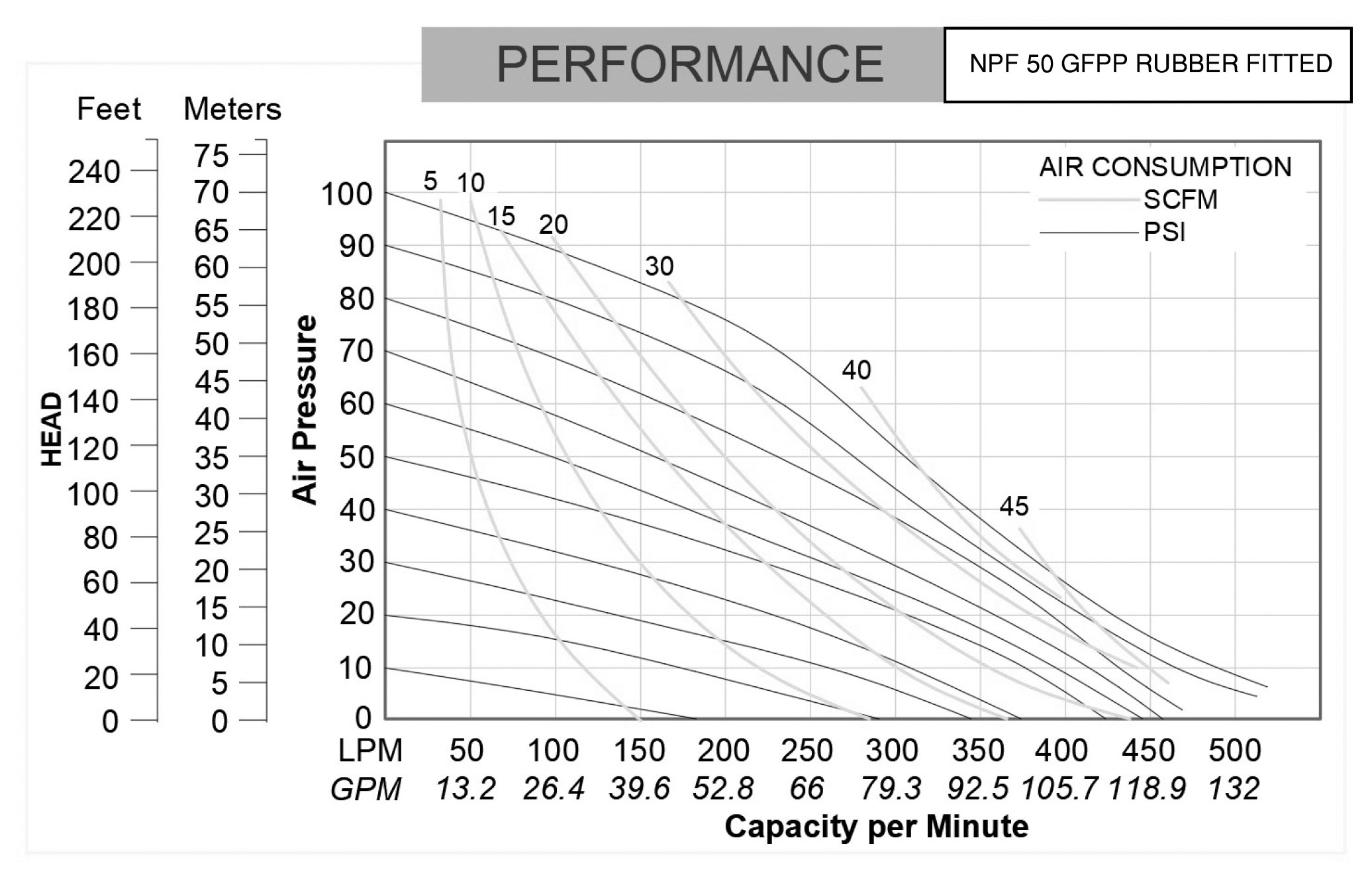

| Maximum Flow Rate: | 141 gpm (534 lpm) |
| Maximum Air Supply Pressure: | 125 psig (8.6 bar) |
| Displacement Per Stroke: | .40 gal (1.51 L) |
| Minimum Air Inlet Stork: | N/A |
| Maximum Particle Size: | 1/3″ |
| Sound Pressure: | N/A |
| Operating Temperature: | Neoprene |
| Bolted or Clamped: | CLAMPED |
| Wetted Materials: | N/A |
| Diaphragm Materials: | N/A |
| Air Valve: | N/A |
| Ball Materials: | N/A |
| Seat Materials: | Graphite Filled Polypropylene |
| O-ring Materials: | Neoprene |
| Maximum Height: | 24.17 |
| Maximum Width: | 21.87 |
| Maximum Depth: | 14.3 |
| Aluminum Weight: | 52 lbs (23.58kg) |
| Stainless Steel Weight: | N/A |
| Ductile Iron Weight: | N/A |
| Polypropylene Weight: | N/A |
