1″ (25 mm) Metallic PTFE-Fitted Air-Operated Double Diaphragm Pump Bolted

Suction & Discharge Size:FNPT 1″ (25mm) Inlet and Discharge
Porting Location:Side Ported
Connection Types:NPT/BSP/FLANGED
Air Inlet & Air Exhaust Size:1/4″

Maximum Flow Rate:56 gpm (212 lpm)
Maximum Air Supply Pressure:125 psig (8.6 bar)
Displacement Per Stroke:.08 gal (.30 L)
Minimum Air Inlet Stork:N/A
Maximum Particle Size:1/8
Sound Pressure:N/A
Operating Temperature:Neoprene -17.8° C to 93.3° C 0° F to 200° F, Buna-N -12.2° C to 82.2° C 10° F to 180° F , EPDM -51.1° C to 137.8° C -60° F to 280° F, Viton®-40° C to 176.2° C -40° F to 350° F, Santoprene®-40° C to 107.2° C -40° F to 225° F, Polyurethane 12.2° C to 65.6° C -10° F to 220° F, Hytrel® -28.9° C to 104.4° C -20° F to 220° F, PTFE 4.4° C to 104.4° C 40° F to 220° F

Bolted or Clamped:BOLTED
Wetted Materials:Polypropylene/Aluminum
Diaphragm Materials:PTFE, Neoprene, Buna, Santoprene®,Viton®, Nordel® Polyurethane,Hytrel®
Air Valve:Aluminum/Polypropylene
Ball Materials:PTFE, Neoprene, Buna, Santoprene®,Viton®, Nordel® Polyurethane,Hytrel®
Seat Materials:N/A
O-ring Materials:N/A

Maximum Height:13.5″
Maximum Width:11.3″
Maximum Depth:14.7″
Aluminum Weight:24 lb
Stainless Steel Weight:N/A
Ductile Iron Weight:51lb
Polypropylene Weight:N/A

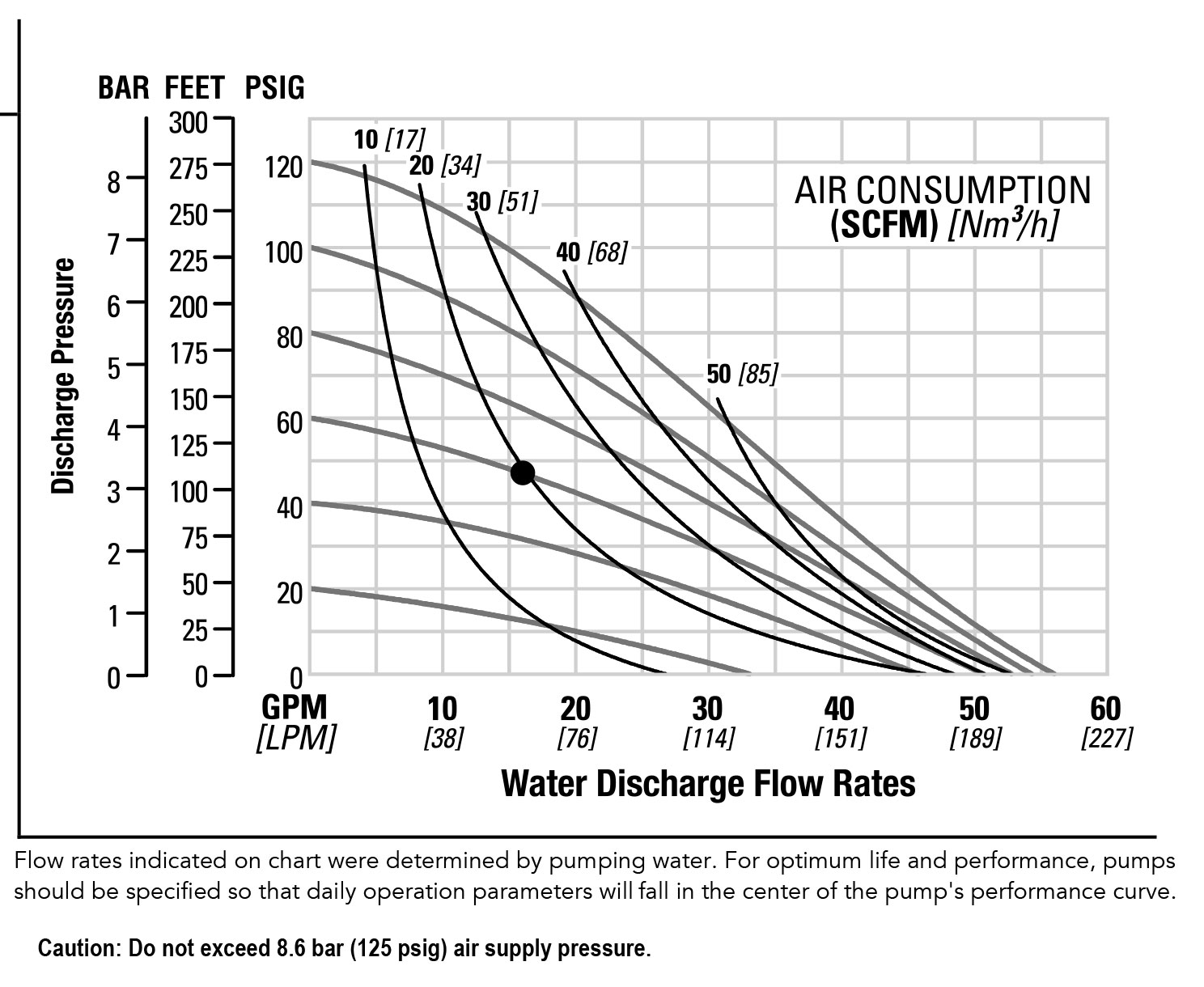

Pump Performance

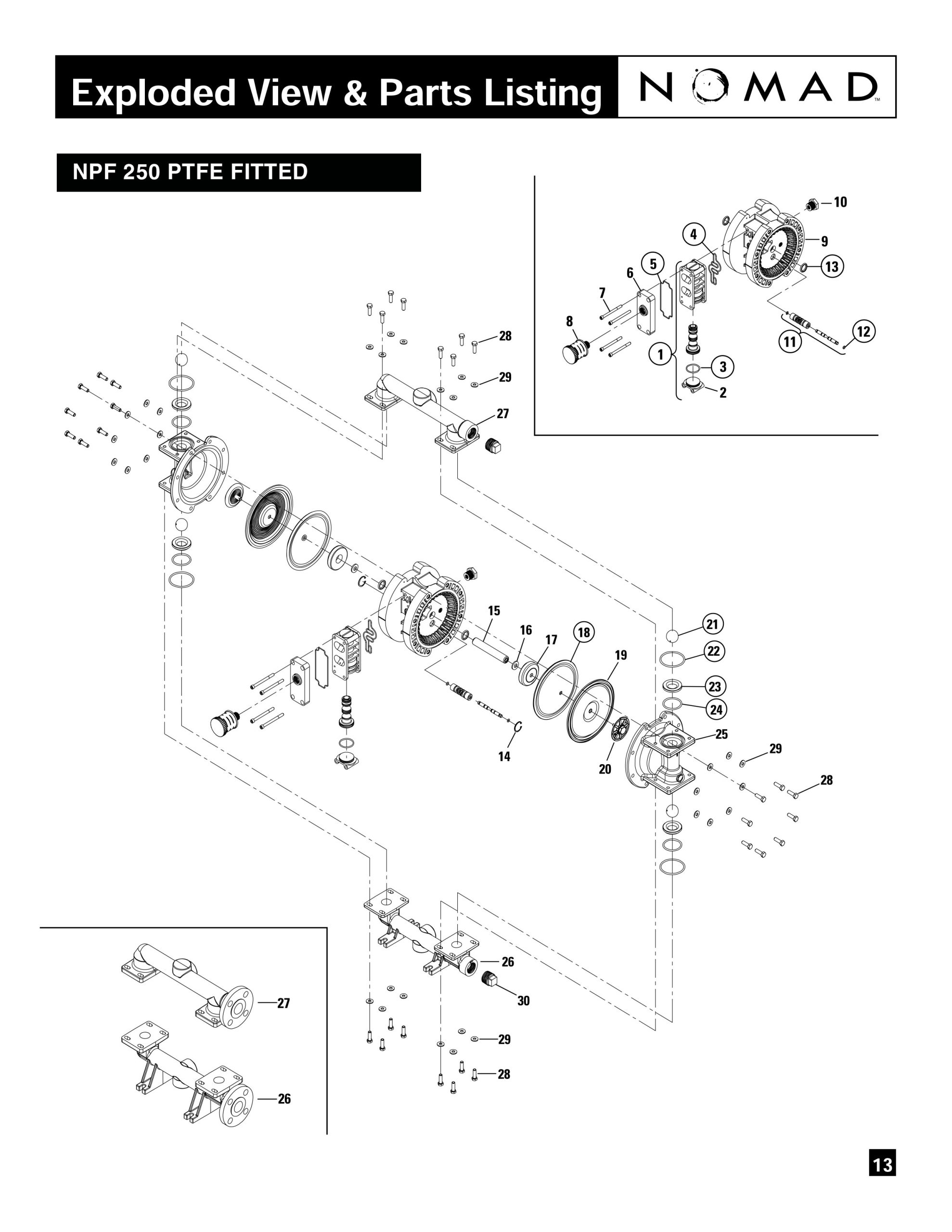

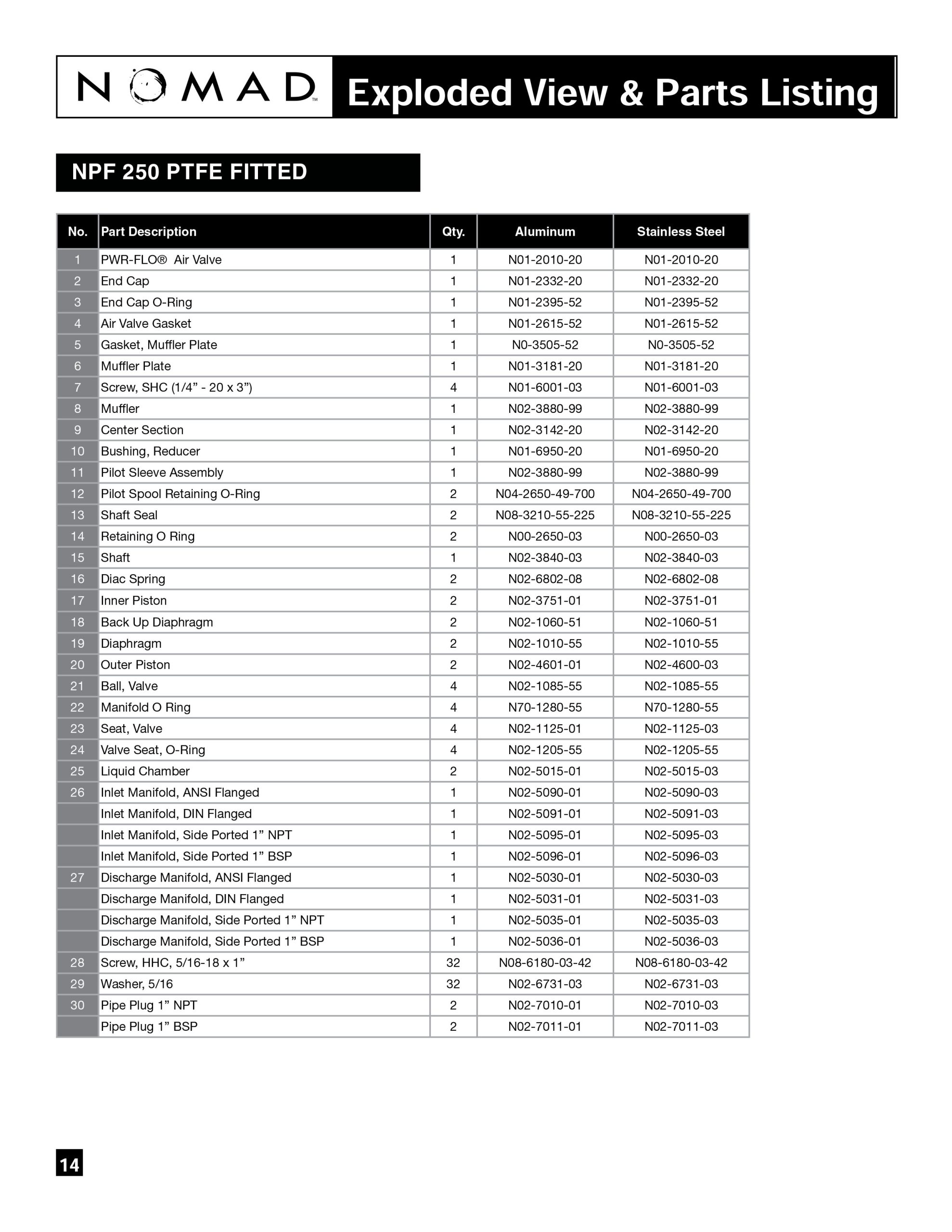

Pump Spare Parts

Pump Applications
